Howo 371 8X4 Concrete Cement Mixer Truck
Model Number: Howo Concrete Mixer Truck
Brand: Sinotruk HOWO
Horse power: 371
Drive Type: 8X4
After-sales Service: 24 Months
Place of Origin: China
Payment Terms: T/T, LC, Western Union
Delivery Time: 15-25 working days after received your payment
Shipping: Ro-Ro/Bulk cargo/Container
shipment / SKD / CKD / etc

- PRODUCT DISPLAY -

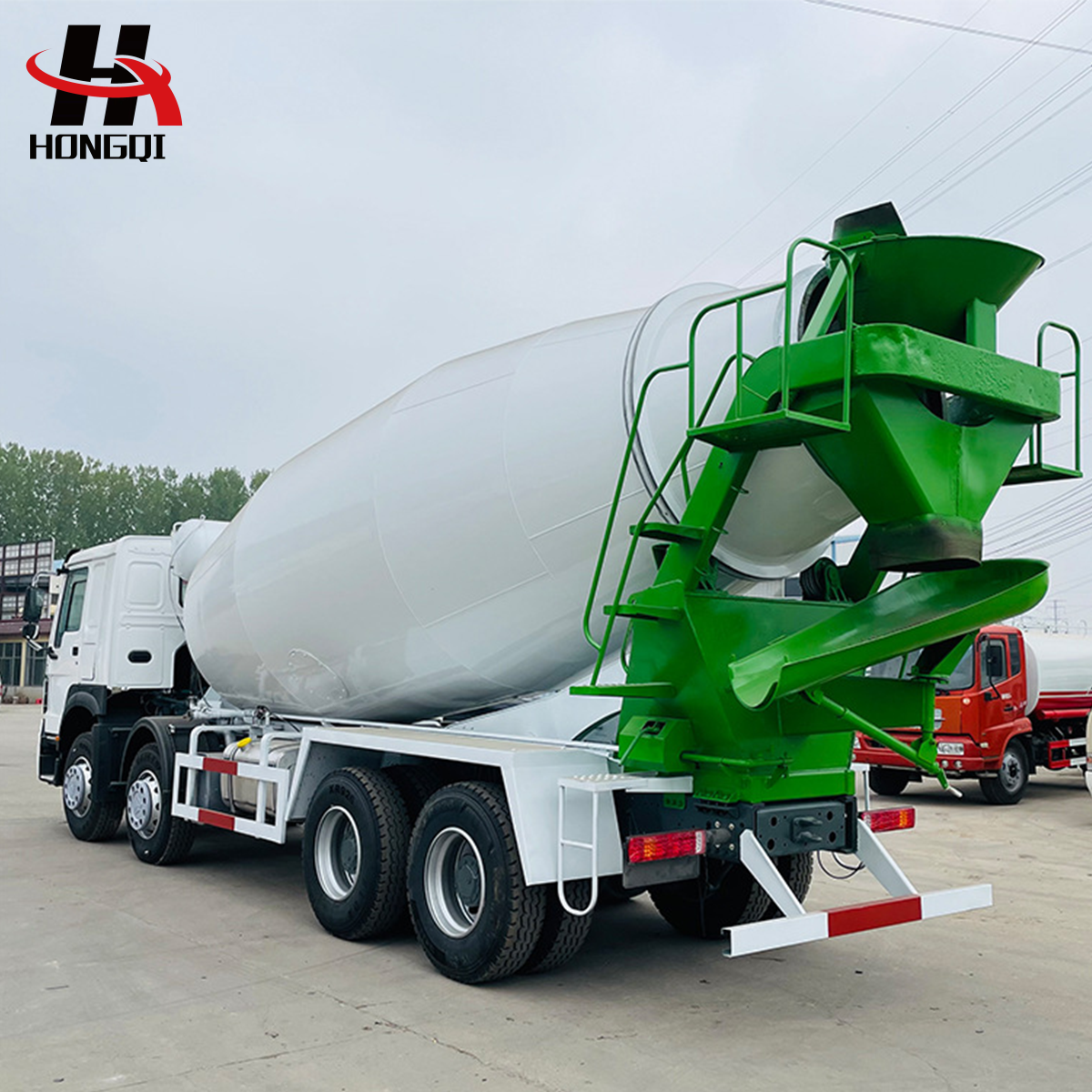

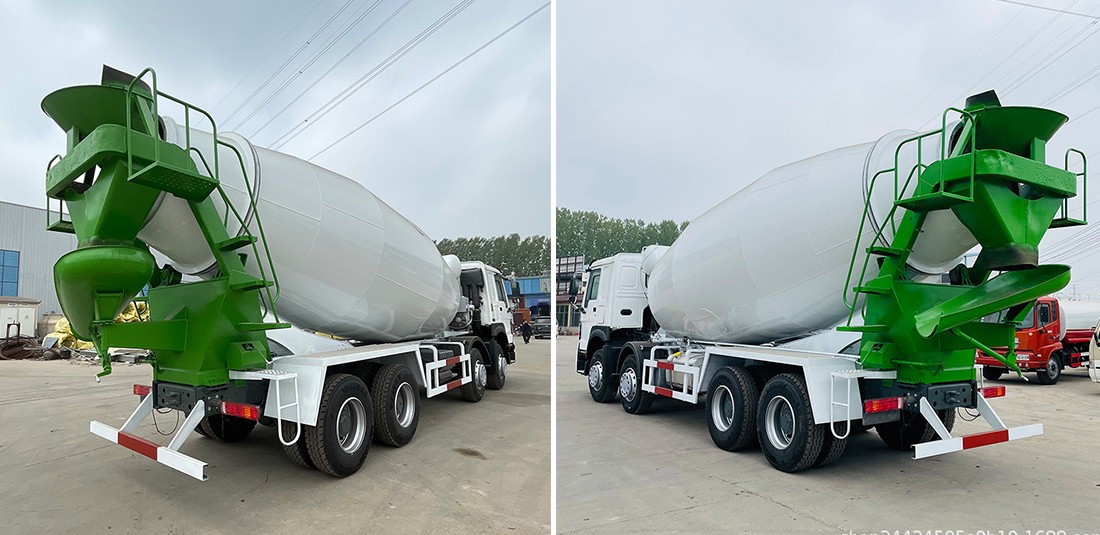

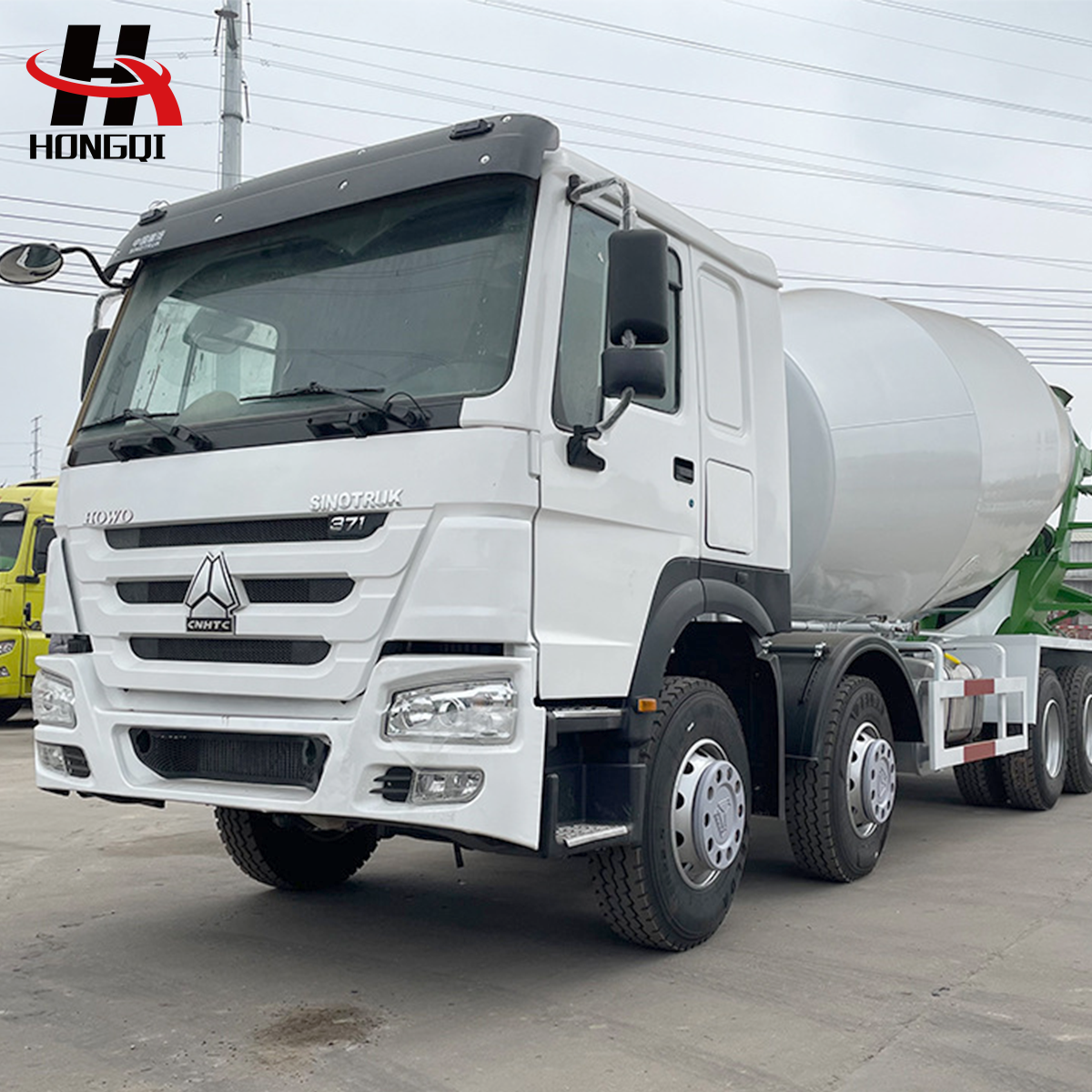

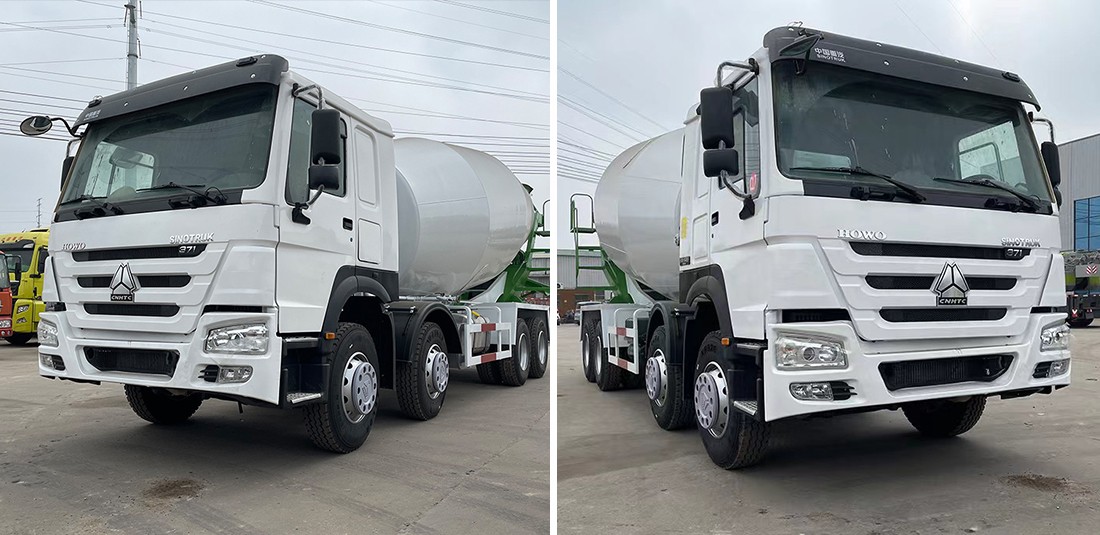

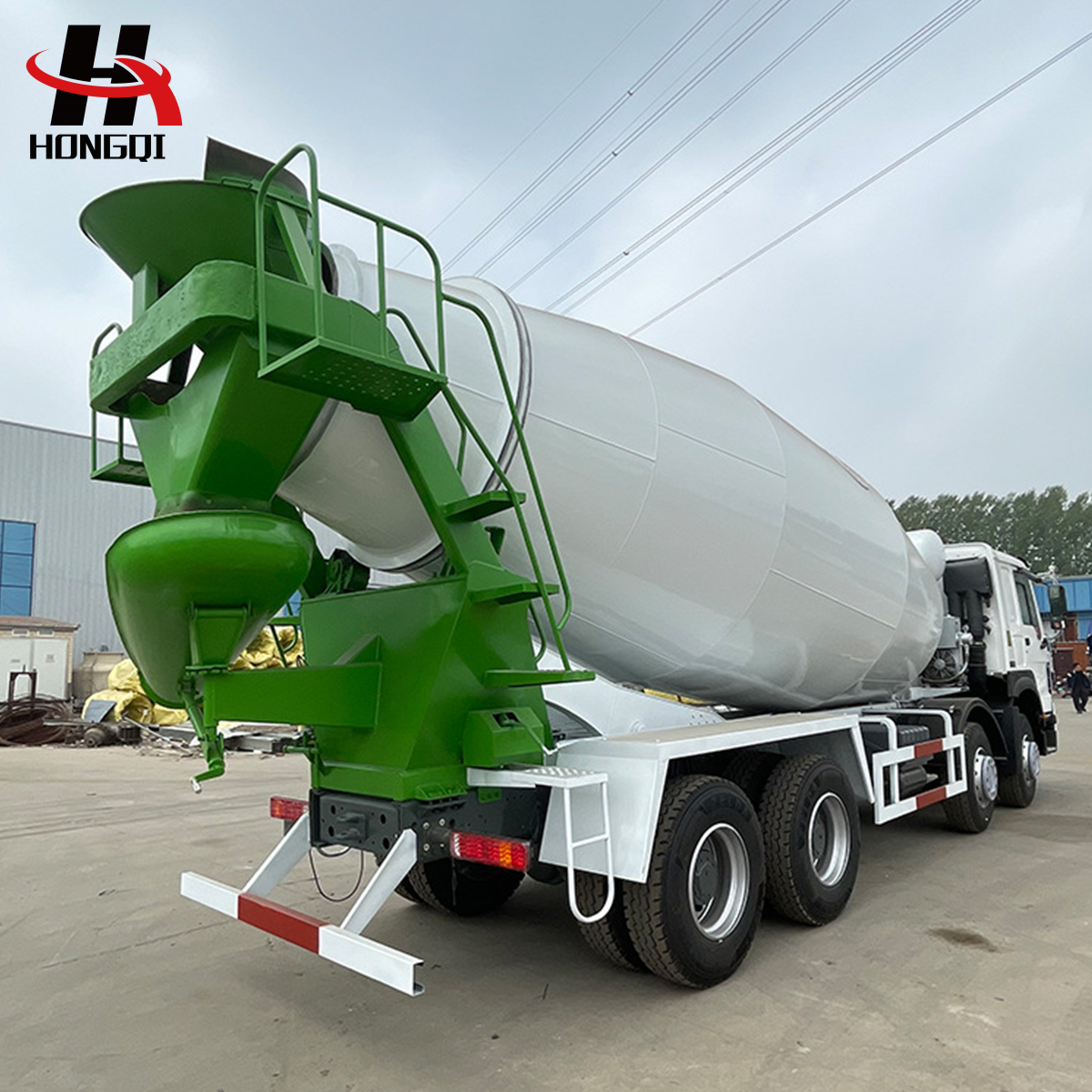

Howo 371 8X4   Concrete Cement Mixer Truck

Howo 371 Concrete Truckfor Sale is a special truck used to transport concrete for construction; because of its shape, it is often called a snail truck. This type of truck is equipped with a cylindrical mixing drum to carry the mixed concrete.


Howo 371 Concrete Truck is constructed with hightensile steel for endurance and resistance to friction. They can handle a wide range of concrete slumps.


The chassis can use Howo , Shacman , The drum capacity can be 6/8/9/10/12/14/15 m3,Varied specifications meet difference demands and requirements



We offer high quality products and competitive price,customer's design is available. You are guaranteed with fast deliveries and quick answer.Your satisfaction is our responsibility.



- PRODUCT PARAMETERS -

Advantage:

1. Wear-resistant strips are installed on the top of the blade to extend the service life.
2. Different sections of the barrel are designed with different helix angles to eliminate the dead angle between the blade and the barrel arm, which has the advantages of fast feeding and discharging speed, good concrete homogeneity, low residual rate and no material accumulation.
3. The subframe adopts rectangular tubes with excellent torsion resistance and bending resistance, and adds flexible diagonal braces to greatly increase the service life of the frame.
4. Adopt international firstclass brand, high reliability. The hydraulic transmission parts used are the best brands in the industry, Sao, Italy, and PMP7.5 from Italy, with high reliability.



SPECIFICATIONS OF   Sinotruk Howo 371 6*4 Concrete Mixer Truck


BrandSinotruk Howo

Driving type 6X4, 8X4, LHD HW76 single bed
Vehicle Main DimensionsOverall dimensions (L x W x H)mm10245x2496x3450

Wheel base (mm)3600+1350

Wheel track (front/rear) (mm)2022/2022

Approach/Departure angle(°)16/24
Max. driving speed(km/h)90
EngineType4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

ModelWD615.47

Horse Power(HP)371

Emission standardEuro II
Gearbox10 forwards & 2 reverse
SteeringLeft hand drive
Tire12R22.5 tubeless tires with one spare
Mixer DrumMixer Capacity16 cubic meters

Drum thickness6mm

Blade thickness4mm

Tanker Material:16MnQ345 Carbon Steel

Filling Rate(%)59

Input Speed (m3/min)≥2.8

Output Speed (m3/min)≥1.2

Surplus Ratio≤0.5

Tanker Rotate Speed(rpm)0~17

Hydraulic PumpItaly Brand: PMP
Drum Drive SystemHydraulic MotorItaly Brand: PMP

Speed ReducerGermany Brand

RadiatorKAITONG

Water Tank Volume(L)400



Our dump trucks can be replaced with new tires, new seats, new center consoles, new gearboxes, new clutches, new engines, etc.

- PACKAGING AND TRANSPORTATION -

Packing and shipping

Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Choose the most safety and economy solutions shipping customers trailers.So customers can get them happily.
We will choose the The most economical, fastest and safest way for customers.

Packing Detail:


RoRo or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free. Usually we will put the truck in cabin ofthe ship.


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided

- FAQ -


1. What kind of payment method can I choose?

(1) L/C 100% at sight
(2) T/T (30% as deposit before production and 70% as balance before shippment)
(3) Other payment methods can be negotiated
2. What is the shipping method and time?
Ro-ro, deck, frame, shipping time depends on shipping company
3.Can You Supply The Spare Parts Of This Truck Trailer?
A:Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
4.Can You Satisfy My Special Requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.
5. Are you a factory or a distributor?
We are a factory with 15 years of export experience
6. How to guarantee truck quality?
There is a one-year warranty, and all parts are inspected.
