Export Sinotruk Howo 371 64 Concrete Mixer Truck
Model Number: Howo Concrete Mixer Truck
Brand: Sinotruk HOWO
Horse power: 371
Drive Type: 6X4
After-sales Service: 24 Months
Place of Origin: China
Payment Terms: T/T, LC, Western Union
Delivery Time: 15-25 working days after received your payment
Shipping: Ro-Ro/Bulk cargo/Container
shipment / SKD / CKD / etc

- PRODUCT DISPLAY -

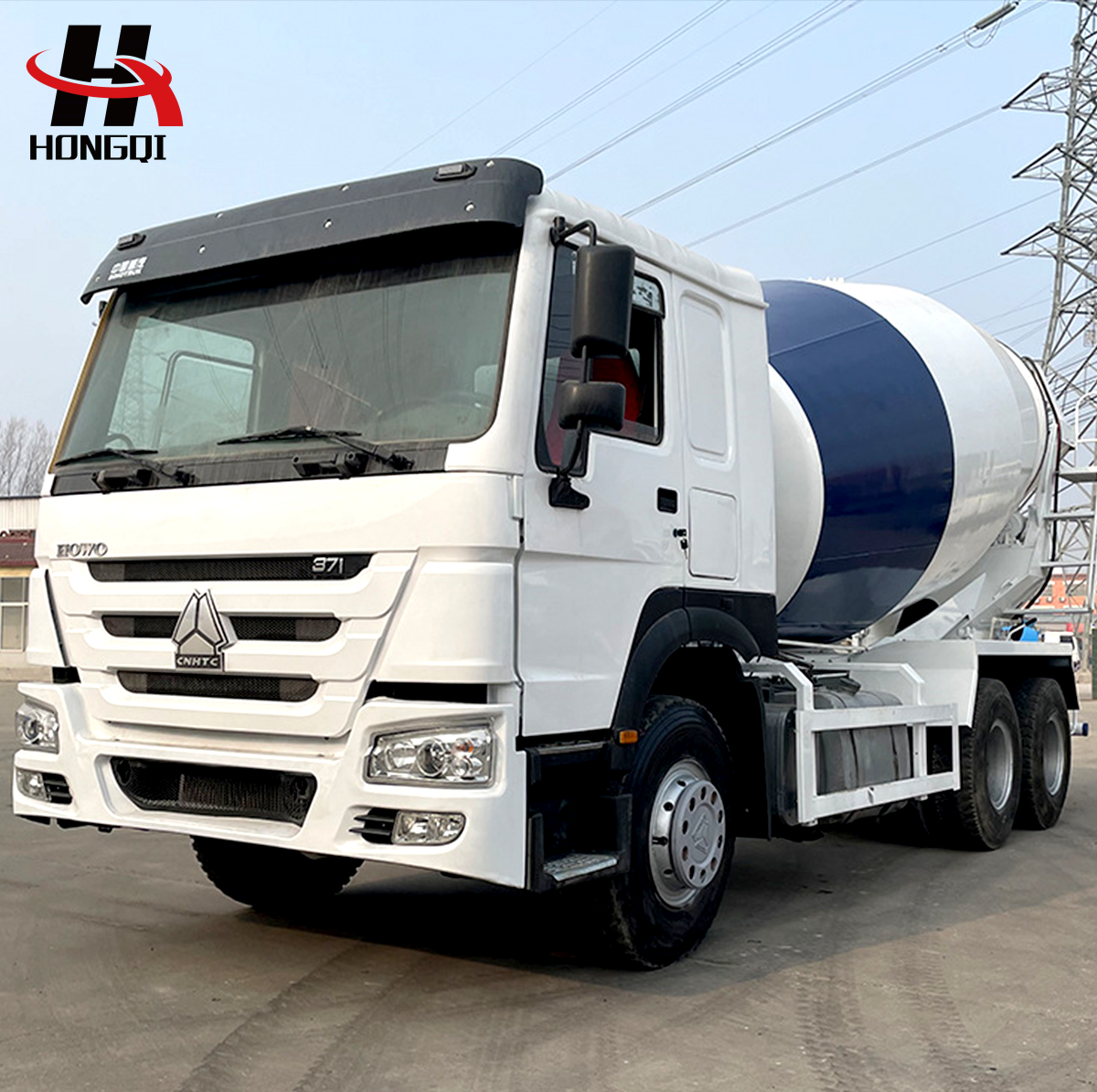

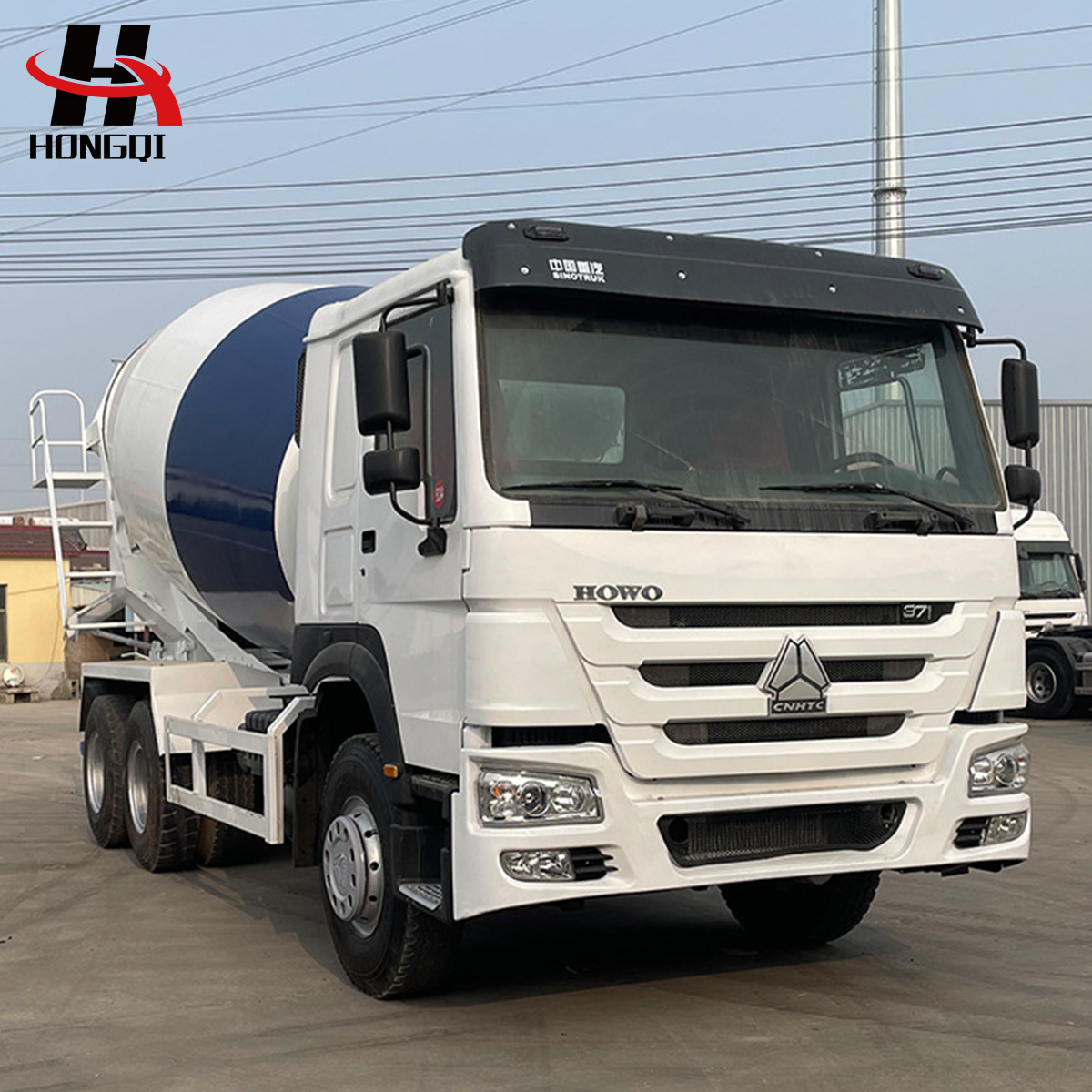

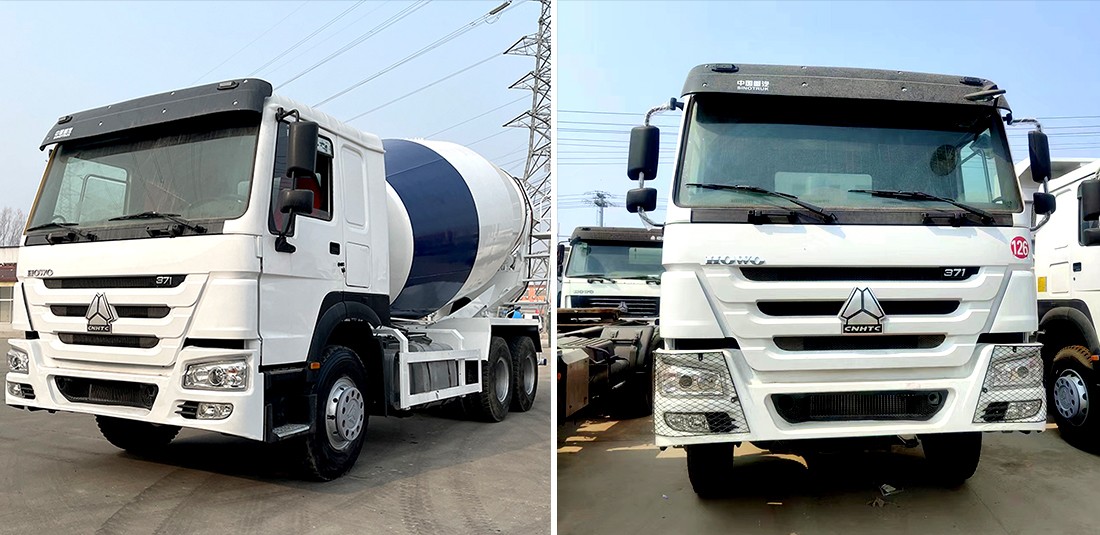

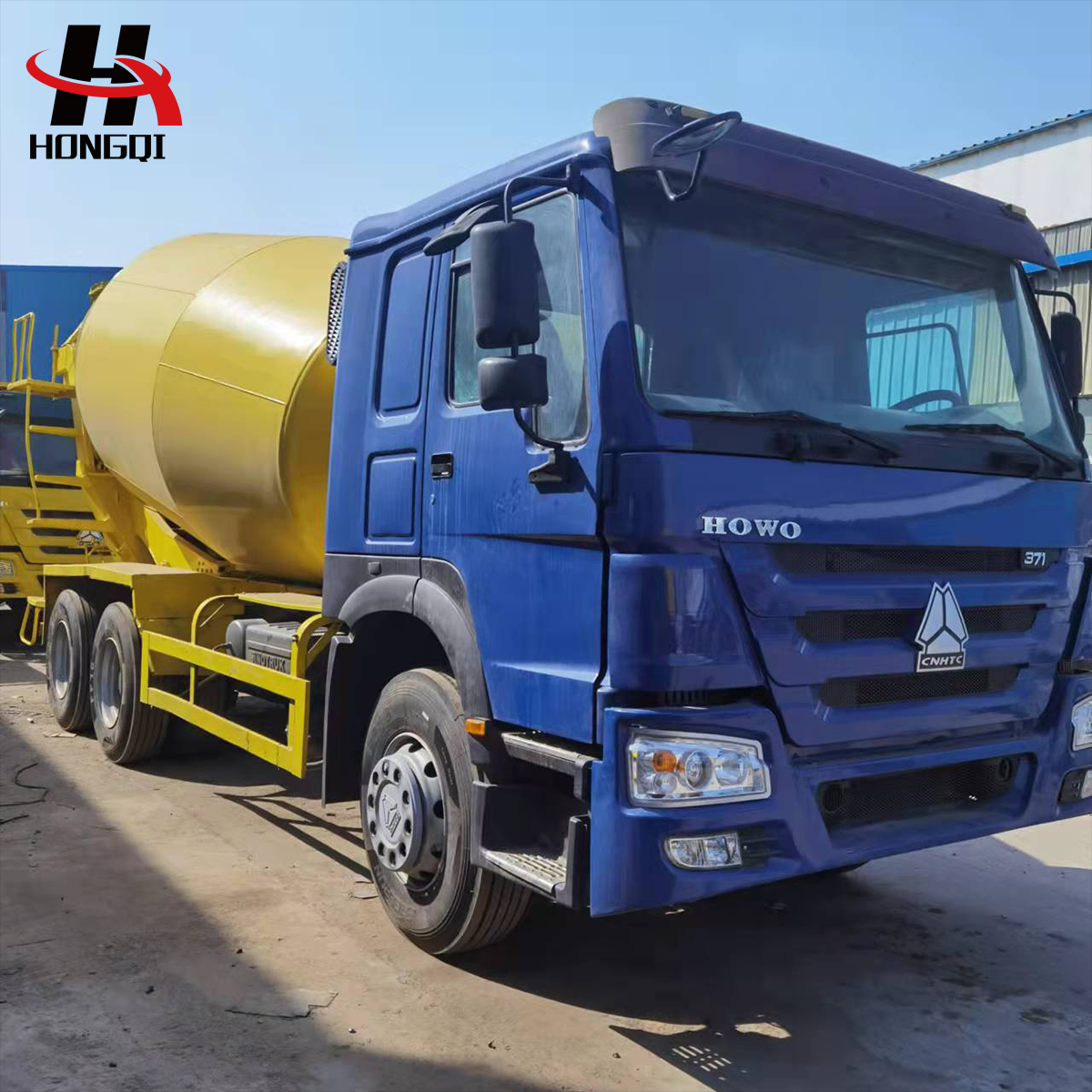

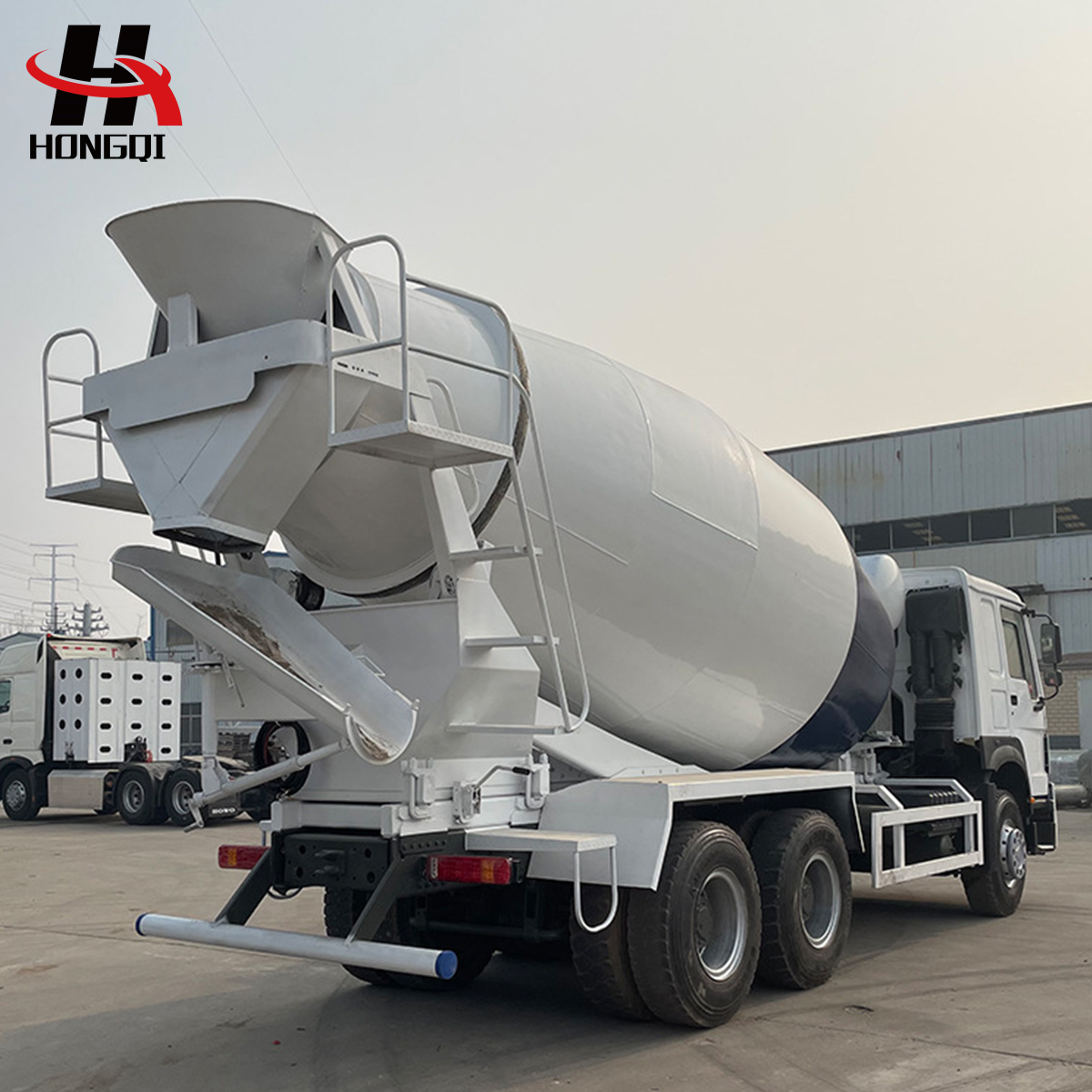

Export Sinotruk Howo 371 6*4   Concrete Mixer Truck

Howo 371 Concrete Truckfor Sale is a special truck used to transport concrete for construction; because of its shape, it is often called a snail truck. This type of truck is equipped with a cylindrical mixing drum to carry the mixed concrete.


Howo 371 Concrete Truck is constructed with hightensile steel for endurance and resistance to friction. They can handle a wide range of concrete slumps.


The chassis can use Howo , Shacman , etThe drum capacity can be 6/8/9/10/12/14/15 m3,Varied specifications meet difference demands and requirements


We offer high quality products and competitive price,customer's design is available. You are guaranteed with fast deliveries and quick answer.Your satisfaction is our responsibility.

- PRODUCT PARAMETERS -


Advantage:
1. Wear-resistant strips are installed on the top of the blade to extend the service life.
2. Different sections of the barrel are designed with different helix angles to eliminate the dead angle between the blade and the barrel arm, which has the advantages of fast feeding and discharging speed, good concrete homogeneity, low residual rate and no material accumulation.
3. The subframe adopts rectangular tubes with excellent torsion resistance and bending resistance, and adds flexible diagonal braces to greatly increase the service life of the frame.
4. Adopt international firstclass brand, high reliability. The hydraulic transmission parts used are the best brands in the industry, Sao, Italy, and PMP7.5 from Italy, with high reliability.


SPECIFICATIONS OF   Sinotruk Howo 371 6*4 Concrete Mixer Truck


Brand

Sinotruk Howo


Driving type 6X4, 8X4, LHD HW76 single bed

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

10245x2496x3450


Wheel base (mm)

3600+1350


Wheel track (front/rear) (mm)

2022/2022


Approach/Departure angle(°)

16/24

Max. driving speed(km/h)

90

Engine

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling


Model

WD615.47


Horse Power(HP)

371


Emission standard

Euro II

Gearbox

10 forwards & 2 reverse

Steering

Left hand drive

Tire

12R22.5 tubeless tires with one spare

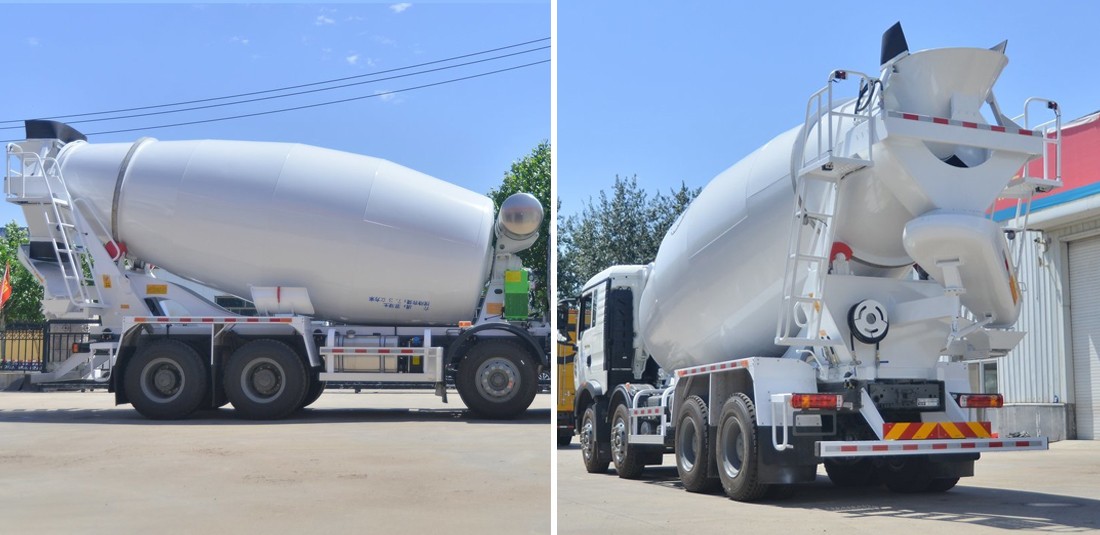

Mixer Drum

Mixer Capacity

16 cubic meters


Drum thickness

6mm


Blade thickness

4mm


Tanker Material:

16MnQ345 Carbon Steel


Filling Rate(%)

59


Input Speed (m3/min)

≥2.8


Output Speed (m3/min)

≥1.2


Surplus Ratio

≤0.5


Tanker Rotate Speed(rpm)

0~17


Hydraulic Pump

Italy Brand: PMP

Drum Drive System

Hydraulic Motor

Italy Brand: PMP


Speed Reducer

Germany Brand


Radiator

KAITONG


Water Tank Volume(L)

400


Our dump trucks can be replaced with new tires, new seats, new center consoles, new gearboxes, new clutches, new engines, etc.


- PACKAGING AND TRANSPORTATION -

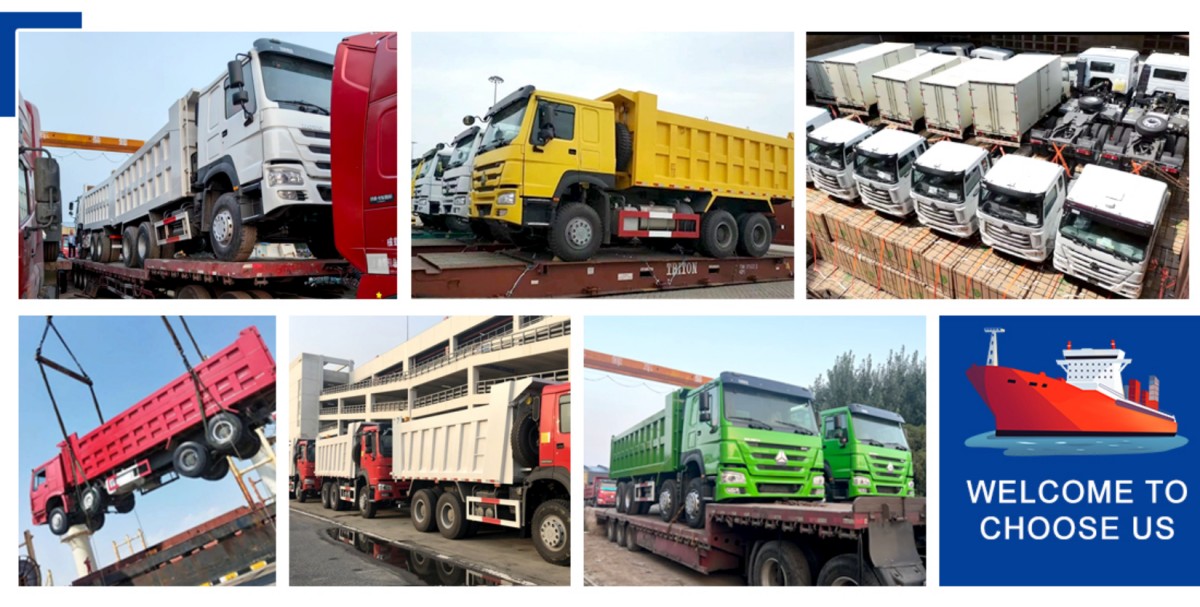

Packing and shipping

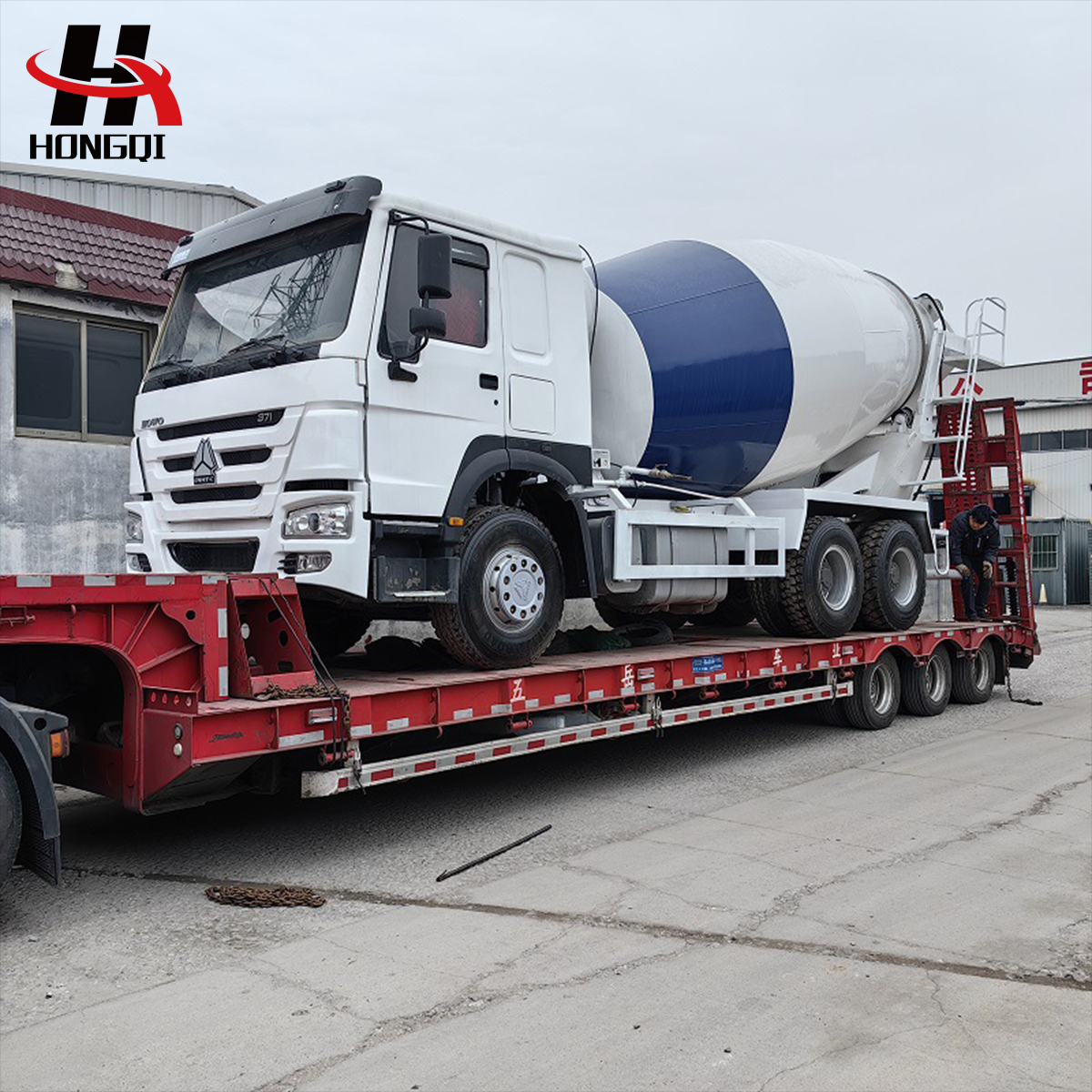

Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Choose the most safety and economy solutions shipping customers trailers.So customers can get them happily.
We will choose the The most economical, fastest and safest way for customers.

Packing Detail:


RoRo or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free. Usually we will put the truck in cabin ofthe ship.


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.



- FAQ -


1. What kind of payment method can I choose?

(1) L/C 100% at sight
(2) T/T (30% as deposit before production and 70% as balance before shippment)
(3) Other payment methods can be negotiated
2. What is the shipping method and time?
Ro-ro, deck, frame, shipping time depends on shipping company
3.Can You Supply The Spare Parts Of This Truck Trailer?
A:Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
4.Can You Satisfy My Special Requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.
5. Are you a factory or a distributor?
We are a factory with 15 years of export experience
6. How to guarantee truck quality?
There is a one-year warranty, and all parts are inspected.
